  • TRANSPARENT LED FILM
TRANSPARENT LED FILM

TRANSPARENT LED FILM

Poineer Of New Generation LED Film


PUYE 's transparent LED screens combine advanced technology and meticulous craftsmanship for unparalleled performance. Including Holographic Invisible Screen, LED Flexible Film Screen, LED Glass Screen, LED Indoor Transparent Screen, LED Outdoor Mesh Screen, etc.

 They have high performance on:

*Lightweight and Durable

Our screens are engineered with premium materials for optimal weight, strength, and longevity.

*Vibrant and Precise

Exceptional LED technology delivers vivid, high-resolution displays with impeccable color accuracy.

*Energy-Efficient

Advanced power management systems ensure low energy consumption and reduced operating costs.

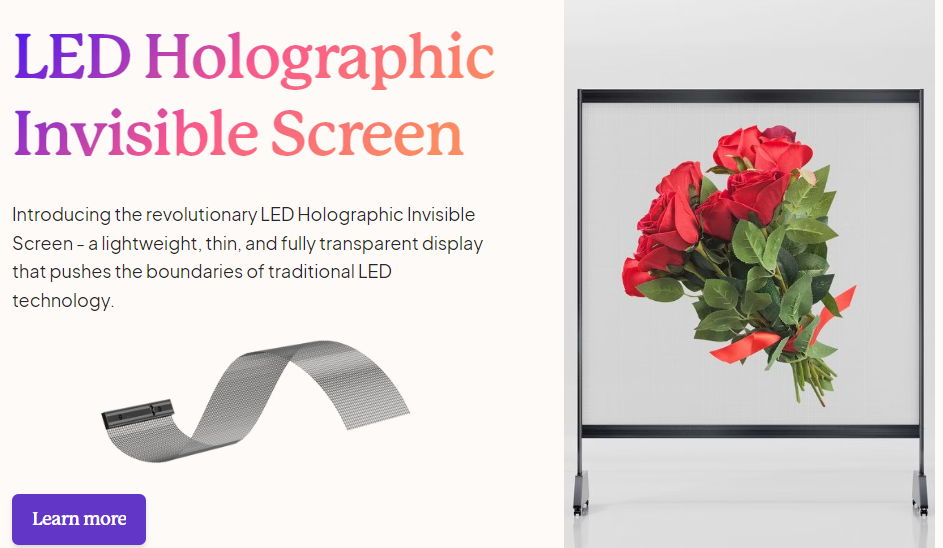

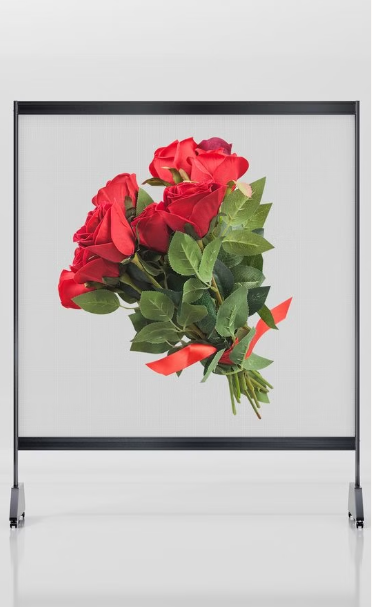

I. LED Holographic Invisible Screen

Introducing the revolutionary LED Holographic Invisible Screen

- light weight, thin, and fully transparent display that pushes the boundaries of traditional LED technology.

-High transparency up to 90%+



Unmatched Performance

Outstanding Image Quality

Delivers a clear, vibrant image with a brightness range of 800-5000 cd/㎡ and a wide viewing angle of ≥160° horizontal and ≥140° vertical.

Reliable and Efficient

Robust power supply and control system ensure ≥10,000 hours of trouble-free operation with an LED chip failure rate of ≤1/10,000.

Transparent and Interactive

Our transparent screen allows for interactive experiences, seamlessly blending digital content with the real world.


Holographic invisible LED screen Specifications


Pixel Pitch

3.5mm - 20mm

Display Thickness

1-3mm

LED chip

SMD1515 SMD2020

Module Size

1500*250mm

Power consumption

Average:200W/㎡


Maximum:600W/㎡

Screen Weight

3kg/㎡

Power Supply Brand

YUANCHI

Transparency Rate

>70%-90%

IP Rating

IP45

Average Lifespan

≥100,000 operating hours

Power Requirements

110-220V±10%; AC50/60HZ

Screen Brightness

800-5000cd/㎡

Viewing Distance

Clear image visible at 3m-250m distance

Viewing Angle

Horizontal ≥160°, Vertical ≥140°

Gray Level

≥16 bit

Color Temperature

5500K-15000K (adjustable)

Driving Method

Static

Attenuation Rate

Less than 0.05% in 2 years

Refresh Rate

≥3840HZ

Frame Rate

≥60HZ

Trouble-Free Operating Time

≥10,000 hours

Led chip Failure Rate

≤1/10,000

Control System

Colorlight/Novastar

Operating Environment

-10~+65 ℃

Installation Method

Adhering to glass, Hanging installation, fixed installation. Support arbitrary size cropping and bending

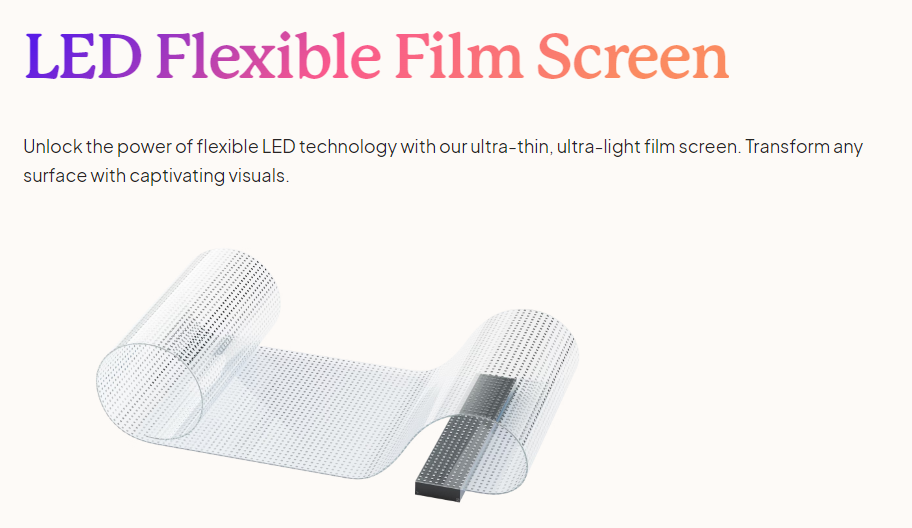

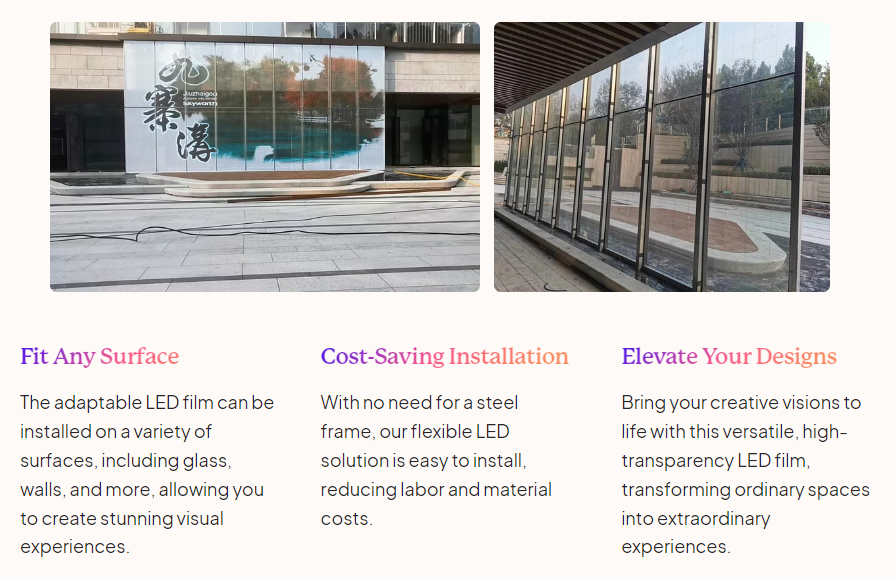

II. LED Flexible Film Screen


95% Transparency Rate

Our LED film screen boasts an industry-leading 95% transparency rate, allowing it to blend seamlessly into any environment.

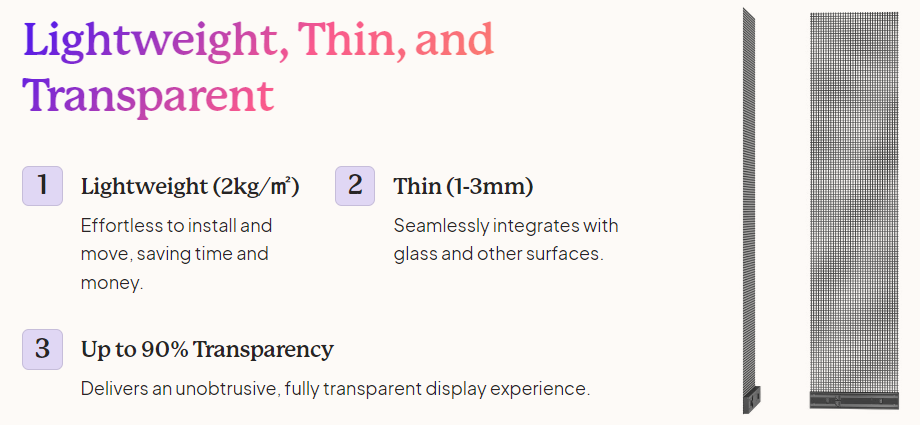

Ultra-thin and Ultra-light

At only 1-3mm thick and 2kg/sqm, this flexible screen is remarkably lightweight and low-profile, making it easy to install.

-Supports Cutting

The film can be easily cut to your desired size and shape, giving you complete design flexibility.

-Highly Flexible

Bend and curve the screen to fit any surface, from walls to glass, for a seamless, integrated look.

-No Steel Frame

Our frameless design eliminates the need for a bulky steel structure, reducing installation complexity and cost.



LED Flexible Film Screen Parameters

Pixel Pitch

6mm - 20mm

Display Thickness

3mm

Brightness

5000nits

Transparency Rate

80% - 95%

LED Chip

SMD2020

Product Size

960*230mm/1200*230mm/1500*230mm

Power Consumption

Average: 240W/m², Maximum: 800W/m²

Screen Weight

≤2kg/m²

Power Supply Brand

YUANCHI

Transparency Rate

>80%-95%

IP Rating

IP45

Average Lifespan

≥100,000 operating hours

Power Requirements

110-220V±10%; AC50/60HZ

Screen Brightness

1500-5000cd/m²

Viewing Distance

6m-250m

Viewing Angle

Horizontal ≥160°


Vertical ≥140°

Gray Level

≥16 bit

Color Temperature

5500K-15000K (adjustable)

Driving Method

Static

Attenuation Rate

Less than 0.05% in 2 years

Refresh Rate

≥3840HZ

Frame Rate

≥60HZ

Trouble-Free Operating Time

≥10,000 hours

Led Chip Failure Rate

≤1/10,000

Control System

Colorlight/Novastar

Operating Environment

-10~+65 ℃

Installation Method

Adhering to glass, Hanging installation, fixed installation. Support arbitrary size cropping and bending

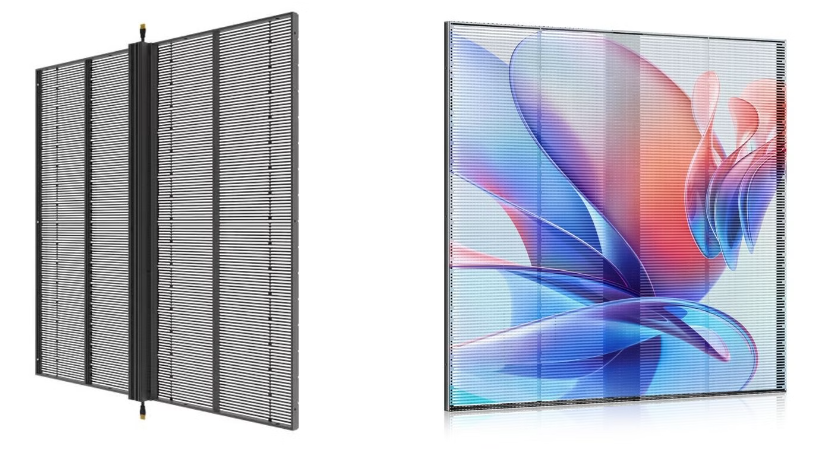

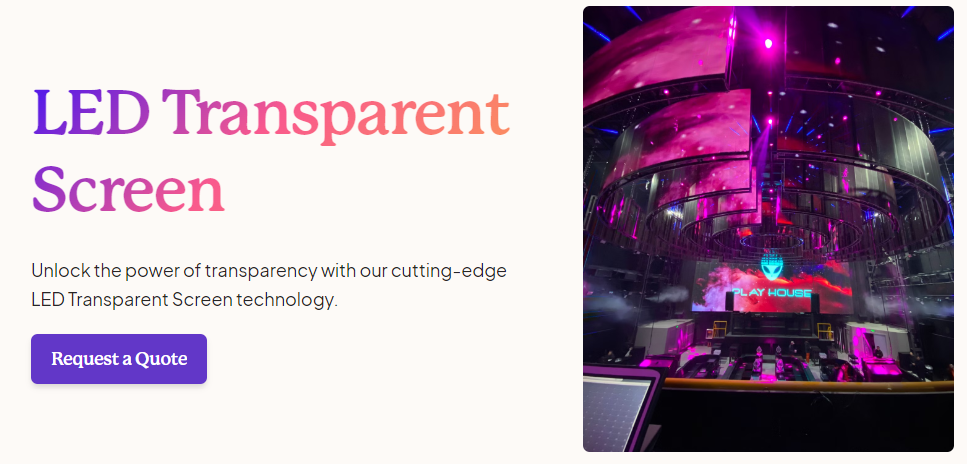

III. LED Transparent Screen


No Steel Frame Required

1》Innovative Design

Our screens are designed to be self-supporting, eliminating the need for a traditional steel frame.

2》Reduced Installation Cost

By removing the steel frame, we've significantly lowered the cost and complexity of installation.

3》Versatile Placement

With no frame, the screens can be installed in a wide range of locations, including walls, ceilings, and more.

IV. Transparent LED FILM


Quick and Easy Maintenance

1 Quick Servicing

With no complex components, our screens can be serviced quickly and efficiently.

2 Minimal Downtime

Maintenance and repairs can be performed with minimal disruption to your operations.

3 Cost-Effective

The simplified maintenance process results in significant cost savings over time.


CONTACT US FOR MORE TYPES OF TRANSPARENT LED FILM AND PARAMETERS
